Tubecheck extruder measurments

Tubecheck Extruder internal measurments

High-Precision Extruder Measurement for Internal Pipe Dimensions

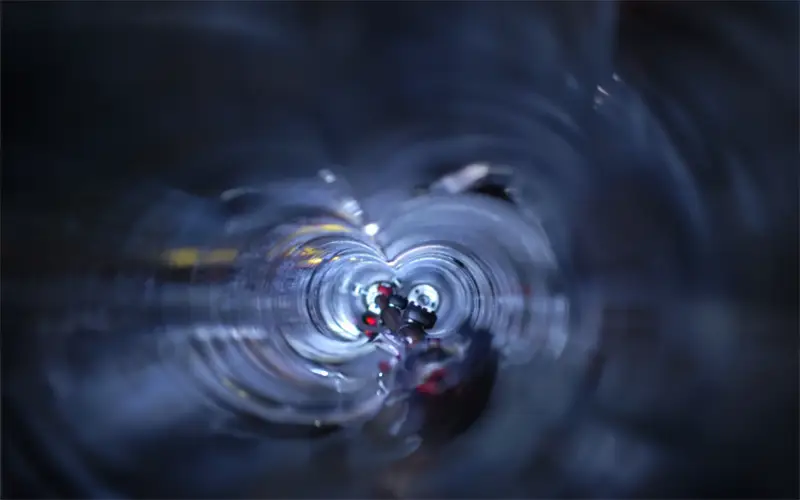

Tubecheck extruder measurments is a state of the art measuring tool designed for high-accuracy internal measurements in extruders. Used in conjunction with our advanced laser tracker, Tubecheck offers an accurate and portable coordinate measuring system. The laser tracker emits a laser beam to a measuring ball with a reflector prism (SMR), which returns the beam and records a 3D coordinate point for precise measurement.

Flexible and Versatile Measurement Capabilities

Tubecheck provides virtually unlimited measurement possibilities as long as there is a clear line of sight to the measuring ball. Currently, MLT can measure pipes as small as Ø70mm, with no upper diameter limit. This flexibility makes Tubecheck an essential tool for a variety of applications, from small pipes to large industrial systems.

Key Measurement Features:

• Diameters, Roundness, and Position: Tubecheck delivers comprehensive internal measurements, providing essential data on diameters, roundness, and pipe positioning.
• Straightness Conversion: Easily convert diameter data into straightness measurements for in-depth analysis.
• Customizable Measurement Intervals: Customers can select specific pipe areas and measurement intervals, with options ranging from full-pipe measurements (e.g., 200mm intervals) to targeted sections (e.g., 500mm with 10mm intervals). The system supports anywhere from 3 to 1000 measurement points per diameter.
• Directional Scanning: Tubecheck can also scan along the pipe’s length, capturing crucial data for line measurements.

Clear, Visual Reports for Enhanced Data Analysis

All measurement data is stored and presented in a clear, visual report, showcasing nominal dimensions and tolerances. The report includes color-coded deviations and bar charts for easier interpretation. Delivered in PDF format, these reports offer a concise overview of the pipe’s condition.

For customers who want a more interactive experience, the measurement file can be shared along with a free viewer, allowing users to zoom and rotate the 3D model to explore the pipe’s measurements and deviations in detail.

Why Choose Tubecheck extruder measurments for Your Measurement Needs?

• High Precision: Tubecheck ensures accurate internal measurements of pipes, down to Ø70mm diameter with no upper size limit.
• Flexible Measurement Options: Tailor measurements to your needs with customizable intervals and point density (3 to 1000 points per diameter).
• Comprehensive Reporting: Easy-to-understand PDF reports with visual color deviations and bar charts for quick analysis.
• Interactive Viewer: Access and analyze measurement data in 3D with a free viewing tool.

Enhance your extruder measurement process with Tubecheck flexible, high-precision technology. Achieve reliable results for pipe diameters, roundness, straightness, and more, all with minimal setup and maximum accuracy.

Learn more: Tubecheck extruder measurments for Precise Pipe Measurements
