PCH 1420 with buffered outputs

PCH 1420 with buffered outputs Vibration Monitor

IoT-enabled condition monitoring solution

This version of the PCH 1420 vibration monitor comes with isolated, buffered outputs in one, compact unit.


With this version, you get all the benefits of the PCH 1420 vibration monitor’s twenty-four-hour asset protection while seamlessly collecting raw, buffered time waveform data from the sensors – accelerometers or eddy current probes – connected to the buffered outputs.

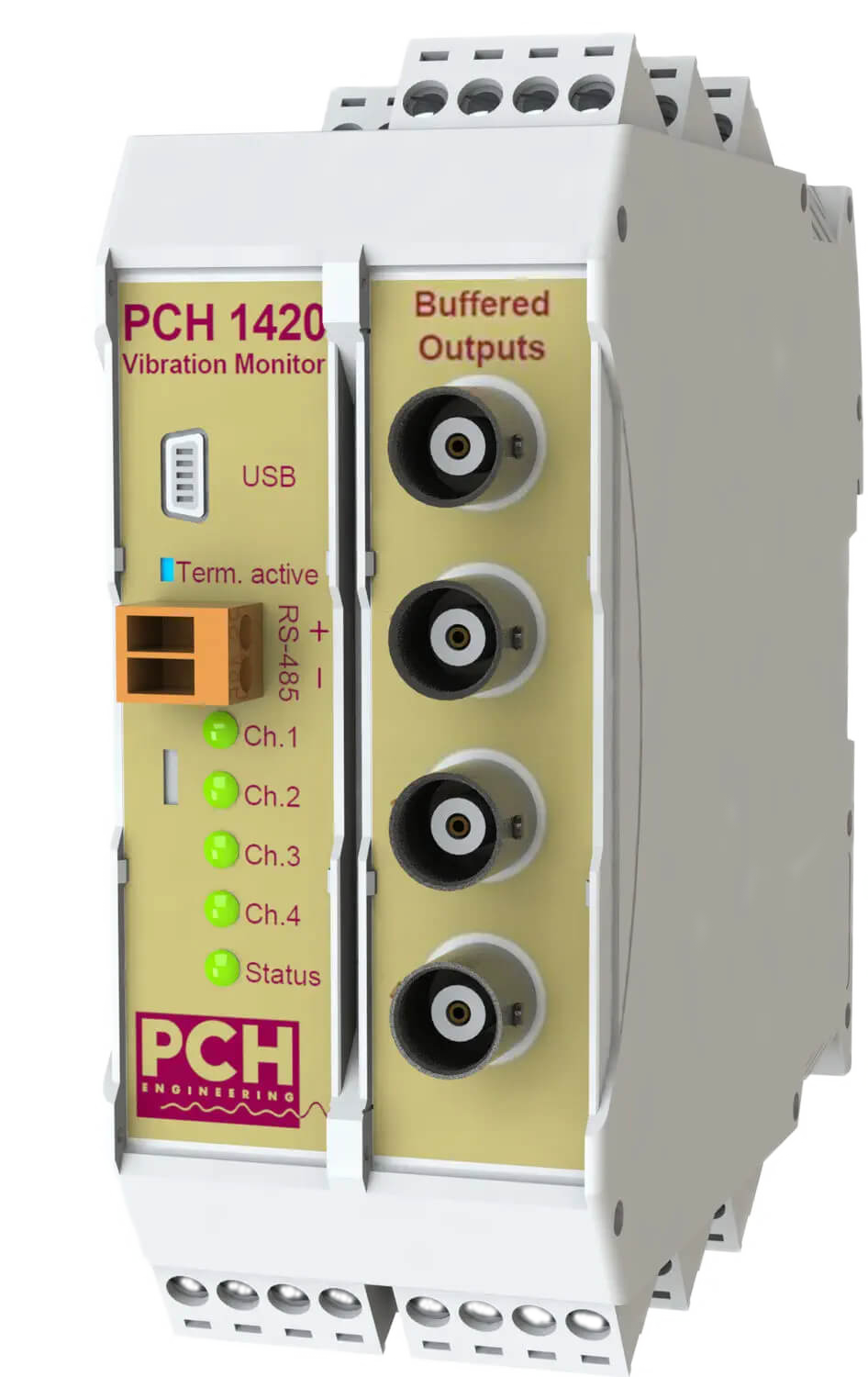

PCH 1420 with buffered outputs has 4 BNC vibration outputs on the front as well as from the screw terminals for each vibration input channel and for the speed sensor. You can use portable vibration equipment to collect data while simultaneously storing data in your condition monitoring system through a hardwired connection to the screw terminal outputs.


At the screw terminals, the buffered output from the speed sensor can work as a trigger for portable equipment in phase analysis and balancing. This is especially handy if the sensors are positioned in hard-to-reach areas.

All what you need in one package

The PCH 1420 vibration monitor gives you thorough insights into the condition of your machinery, helping you prevent serious machine damage and costly production stops.

This vibration monitor is the sensible choice when you wish to combine machine protection with the condition monitoring of roller bearings.

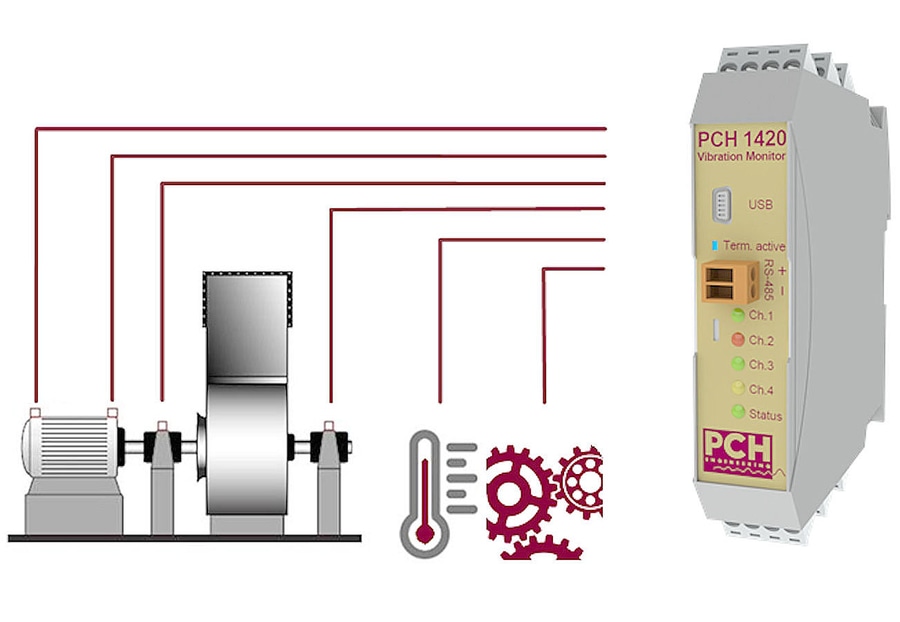

The PCH 1420 is a volatile 4-channel vibration and process system for the permanent monitoring of vibrations and process parameters in rotating machinery.

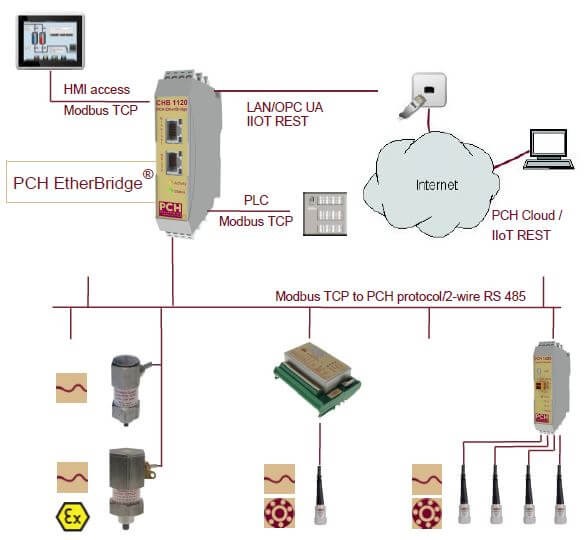

Easily integrate the monitor with your DCS, SCADA system or PLC through hardwired 4-20 mA signals, alarm relays or various interfaces like Modbus TCP/RTU, ProfiNet, OPC UA or IIoT (REST).

As a complement to PCH 1420, it is recommended to use Vibration sensors and guards. These are also available in ATEX design.
