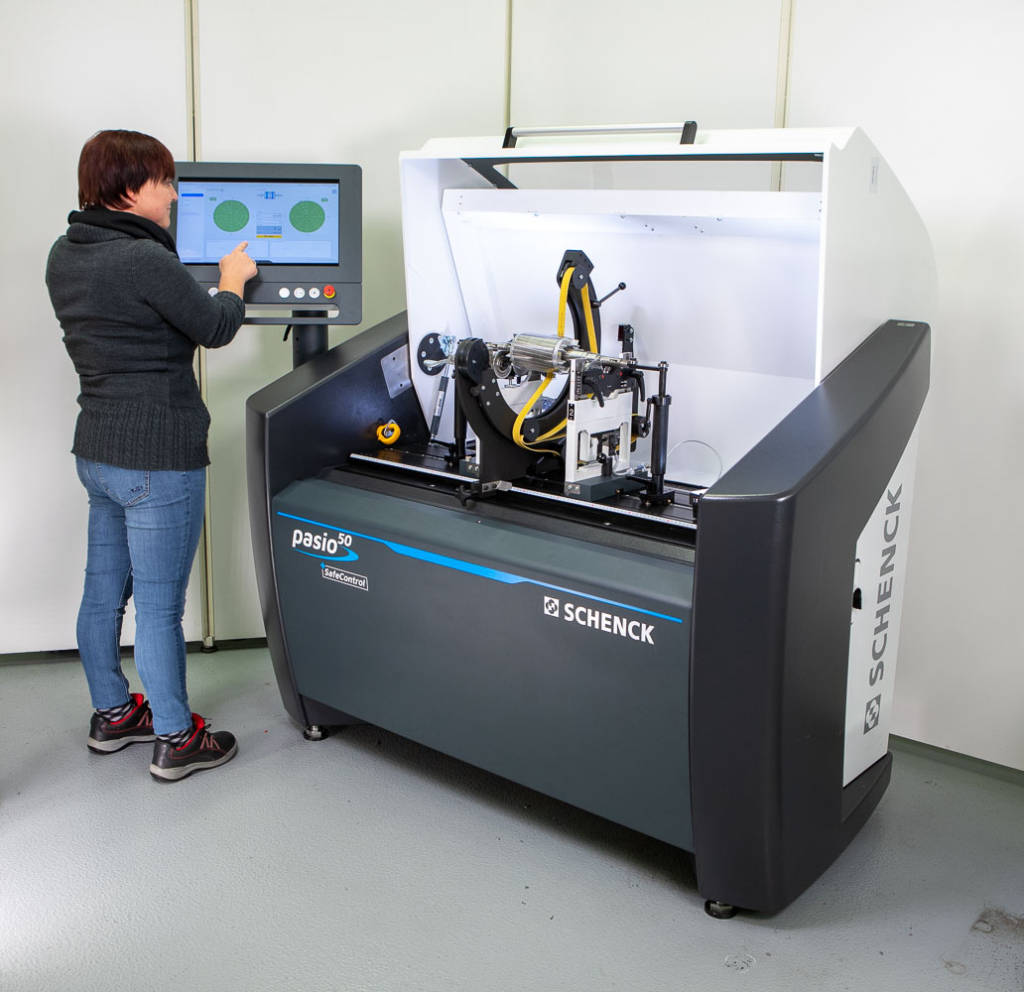

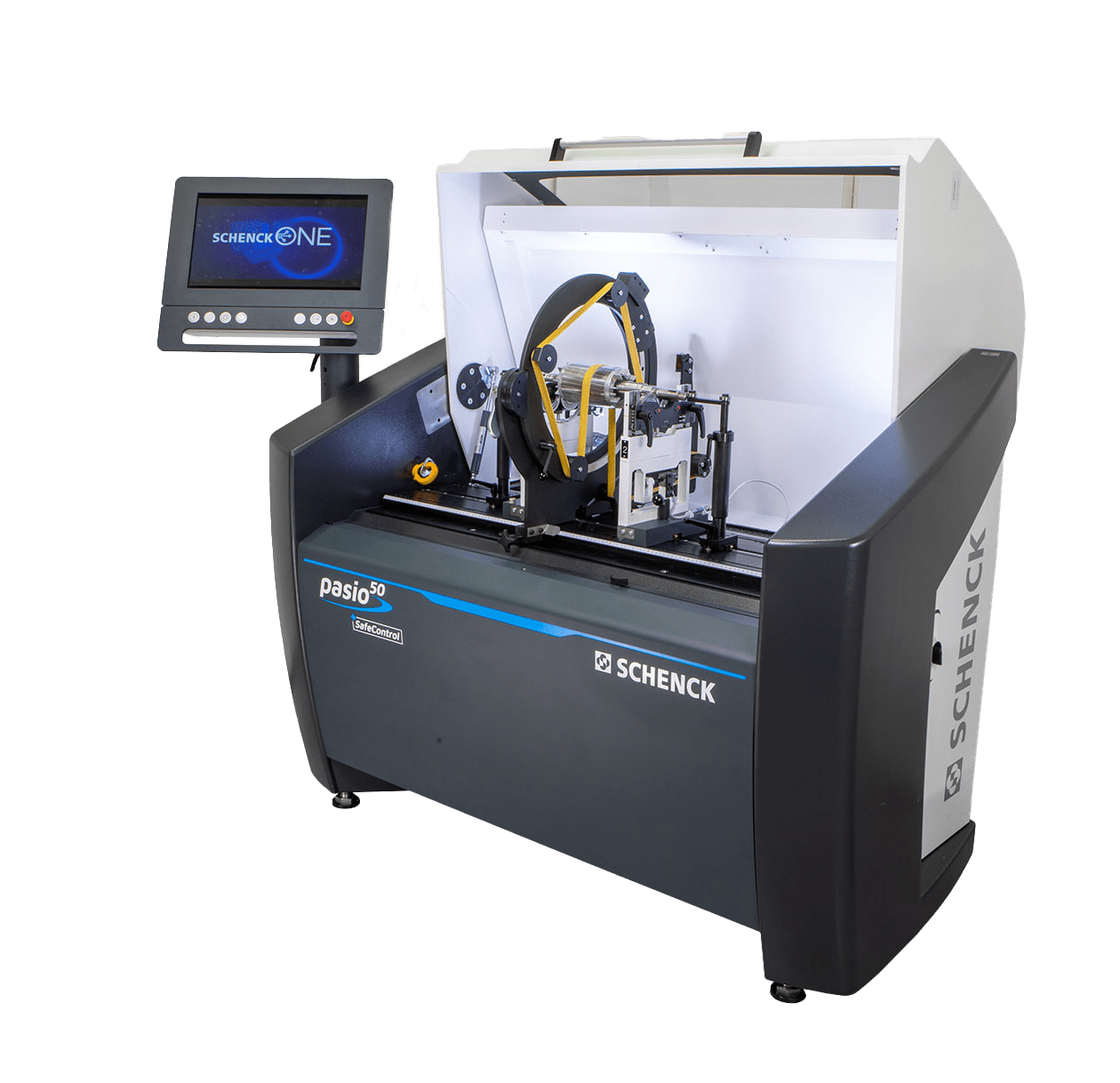

Schenck Pasio 50
Schenck Pasio 50 – The universal talent among the balancing machines.
The versatile standard for horizontal universal balancing machines
for rotors up to 50 kg.
Schenck Pasio 50
Schenck Pasio 50 the all-rounder machine for smart balancing Modern and established under one bonnet
A new model … even though its predecessor is still not outdated?
Correct! It´s because our engineers and designers are continually striving to provide you with best-in-class solutions. The Pasio 50 sets many new standards in technology, design and ergonomics. Experience greater operator usability, improved user interface and easy integration into networks or process control systems! The Pasio 50 is the second generation of our large Pasio series. It is designed for rotors up to 50 kg with a maximum rotor diameter of 600 mm and a length of 1,000 mm. It covers a wide range of rotors that are frequently encountered in production plants and repair facilities. Sophisticated mechanics and perfect measuring technology permit residual unbalances of less than 0.5 gmm per plane and therefore a very high unbalance reduction ratio of 95 %.
Data at a glance:
Maximum rotor weight: 50 kg
Largest rotor diameter: 600 mm
Distance between bearing center points: 50 – 1,000 mm
Minimum diameter: 9 – 63 mm
Minimum achievable residual unbalance per plane: 0.5 gmm
Highlights
- Compact design
- Fast setup
- Ergonomic operator concept

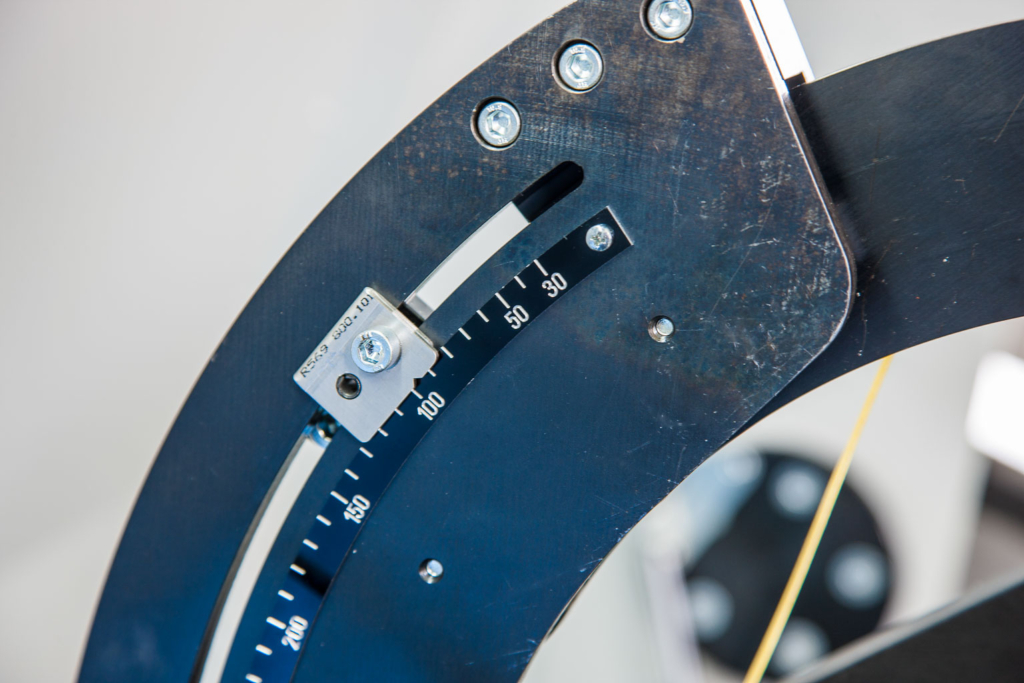

- One drive belt for all rotor diameters
- High-performance drive for a large spectrum of different rotors
- Not affected by interferences
- Highest measuring accuracy
- Wide range of accessories

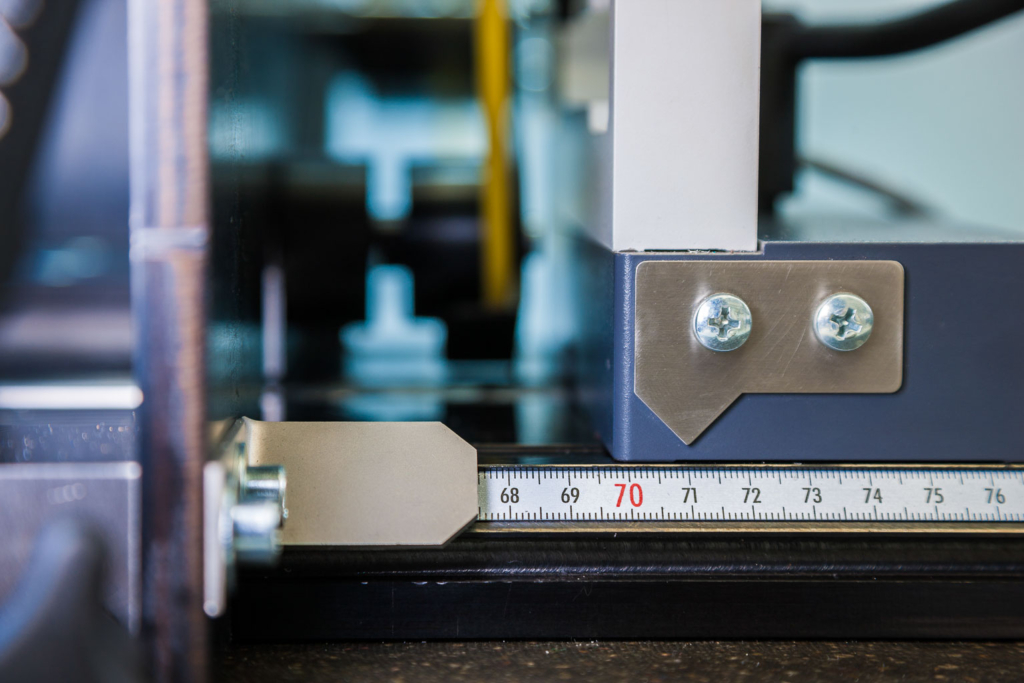

- Set up requires no tools
- One hand belt drive
- Can be extended with integral mass correction system
- Touch screen operation with EasyMode providing simple and reliable operation
- High process reliability
