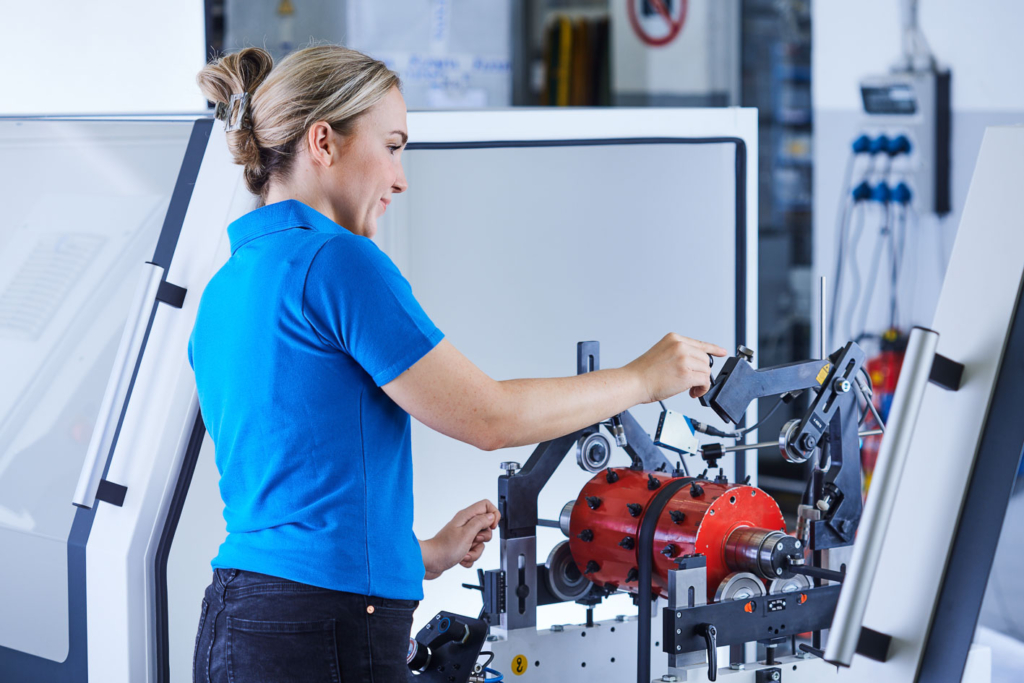

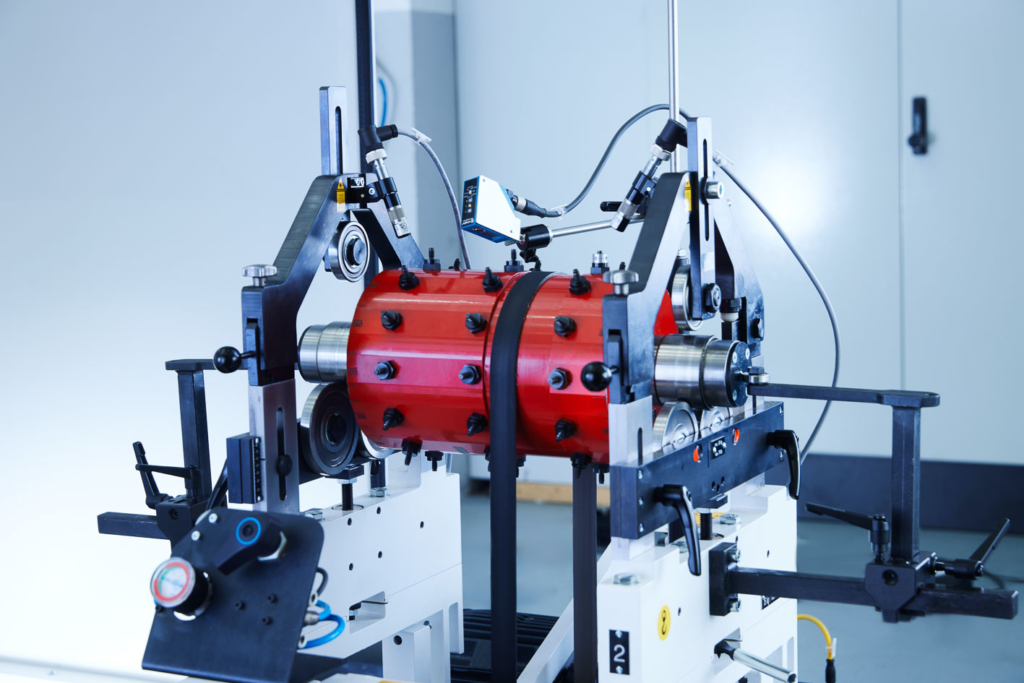

Schenck Pasio 100-700 Horizontal Balancing Machine

Schenck Pasio 100-700 Horizontal Balancing Machine

World class for a broad range of rotor sizes and types

Whether you’re working with fans, spindles, electric armatures, compressors, rollers, or turbochargers, rotors must be measured, checked, and balanced. With the new Pasio 100, Pasio 300, and Pasio 700, small companies, repair shops, and manufacturers of large quantities now have the ideal machines for balancing horizontally mounted rotors.

Versatile Machines

These machines are highly versatile. Not only are they suitable for one type of rotor, but they can also handle a broad range of applications. For instance, they work seamlessly with cylindrical rotors that have their own shaft journals, as well as with disc-shaped rotors that feature mounting arbors. Additionally, they can manage weights of up to 700 kilograms.

Meets Your Requirements

Furthermore, the smart, modular system offers users increased flexibility and additional accessories. No matter how you decide to use your Pasio, whether it’s for production or maintenance, it will adapt to suit your specific needs. Whether you are working with individual rotors or in series batches, the system can measure unbalances, determine their position, correct them, or even perform control measurements. In any case, whatever your requirements may be, our solution will always meet them.

Model Overview:

Minimum achievable residual unbalance per plane: 1.5 gmm, 0.06 ginch

Pasio 100:

Rotor weight: up to 100 kg

Minimum achievable residual unbalance per plane: 0.8 gmm, 0.03 ginch

Pasio 300:

Rotor weight: up to 300 kg

Minimum achievable residual unbalance per plane: 1 gmm, 0.04 ginch

Pasio 700:

Rotor weight: up to 700 kg
