Machine train alignment made easy

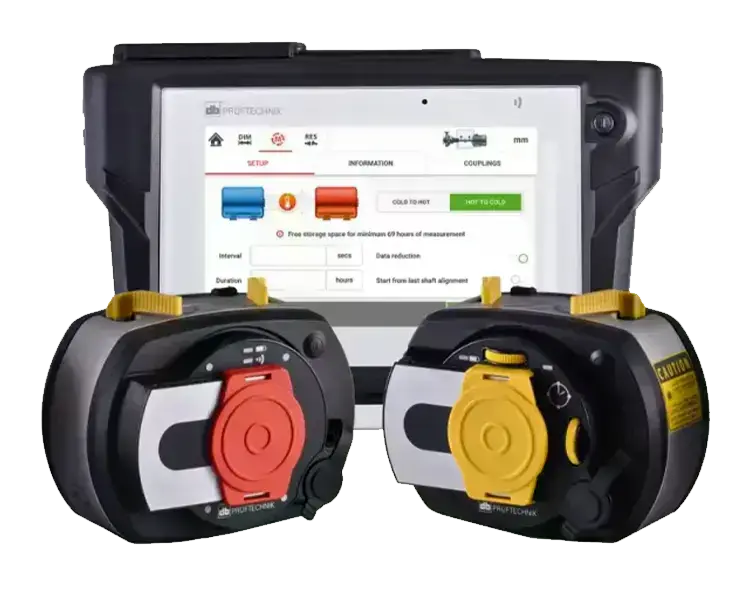

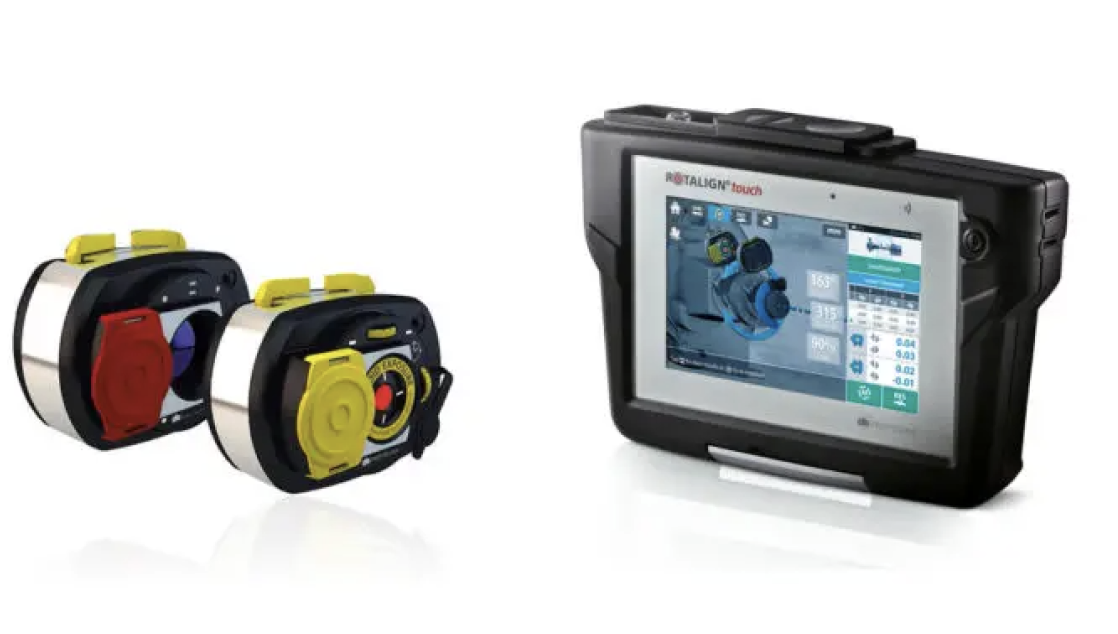

Fast machine train alignment without limitations! By using the well-thought-out technology in Rotalign Touch, MLT can in the fastest way optimize the correct and smallest possible movements required when aligning a machine train. A clear graphic documentation of before and after is always submitted after the assignment is completed. We use PRÜFTECHNIK’s laser measuring instruments with a unique state-of-the-art technology for maximum precision and user-friendly alignment of shafts. Measuring and engineering services in the form of measuring assignments, analyses, calibration and investigations on site at our customers’ or with us are a vital part of our business. Read more about the other services we provide here.

Laser shaft alignment

With OPTALIGN and ROTALIGN, PRUFTECHNIK established laser shaft and machine alignment by laser worldwide in the early 1980s. PRUFTECHNIK is thus synonymous with laser alignment of machines – no matter which type is used.

PRUFTECHNIK also offers precise laser shaft alignment as a service and as a training course in the field. Why is such precision alignment so important?

If the permissible working range of a shaft coupling is exhausted, secondary vibrations and increased restoring forces occur already in the limits, which lead to increased seal and bearing wear and in extreme cases even to shaft breakage.

Which maximum parallel, angular and axial misalignment a coupling can compensate is determined by its design, among others, according to the coupling tolerances.
