HM4 – HM50
Horizontal Balancing Machines
Universal HM4 – HM50 Horizontal Balancing Machines are designed for accurate balancing of a wide spectrum of rotors.

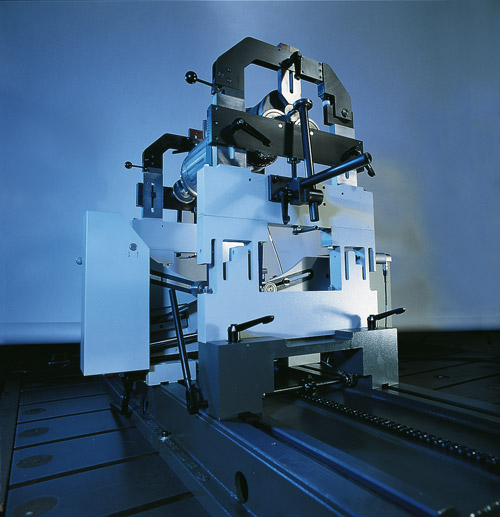

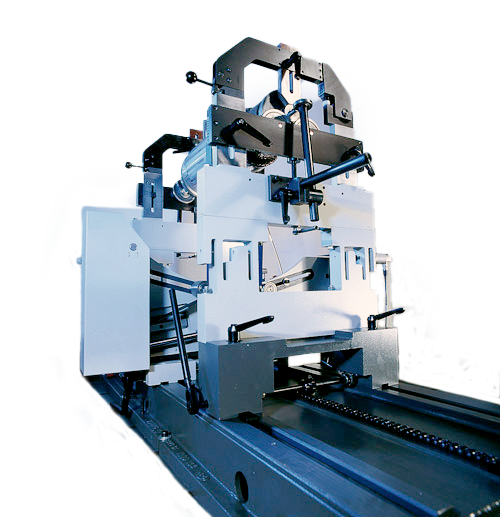

Schenck HM4 – HM50 Horizontal Balancing Machines
HM4 – HM50 easy to upgrade through modular construction and a wide range of accessories.
Balancing Machines are designed for accurate balancing of a wide spectrum of rotors. They are suitable for balancing cylindrical rotors with integral shaft journals and for balancing disc shaped rotors on balancing arbors.

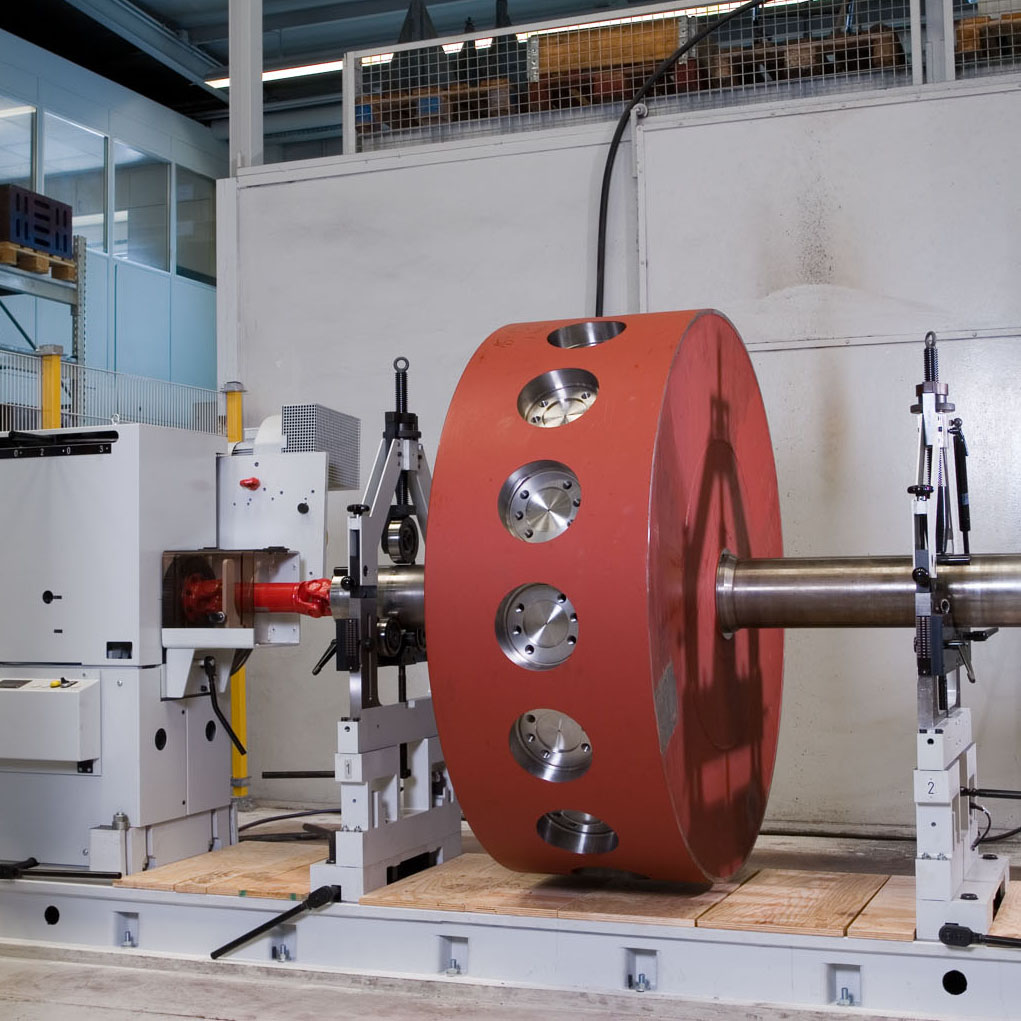

Typical rotors are electrical armatures, rolls up to 8000 kg, spindles, turbo charger rotors, crankshafts, ventilators, pump impellers, drive assembly components, and gear wheels.
Permanent calibration, ergonomic design with HM4 – HM50 Horizontal Balancing Machines
Permanent calibration, ergonomic design and a logical operating sequence facilitate operation. Their modular design principle and a wide range of accessories make the machine highly flexible.
Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.
Highlights
- High balancing accuracy
- Easy to upgrade through modular construction and a wide range of accessories
- Hard-bearing principle ensures quick change-over from one workpiece to the next
- Measuring instrument CAB 820, optional CAB 920 – the high end solution
- Full range of safety equipment for all protection classes
- Easy to operate – hard-bearing principle eliminates the need for calibration runs
- Provides for correction in two planes or separate correction of static and couple unbalance
- Rotors can be mounted on their original shafts or on mounting arbors, optionally with mounted anti-friction bearings
- Angle indexing display in case of belt drive
- Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time
- Upgradeable by many additional modules e.g. for mass correction
