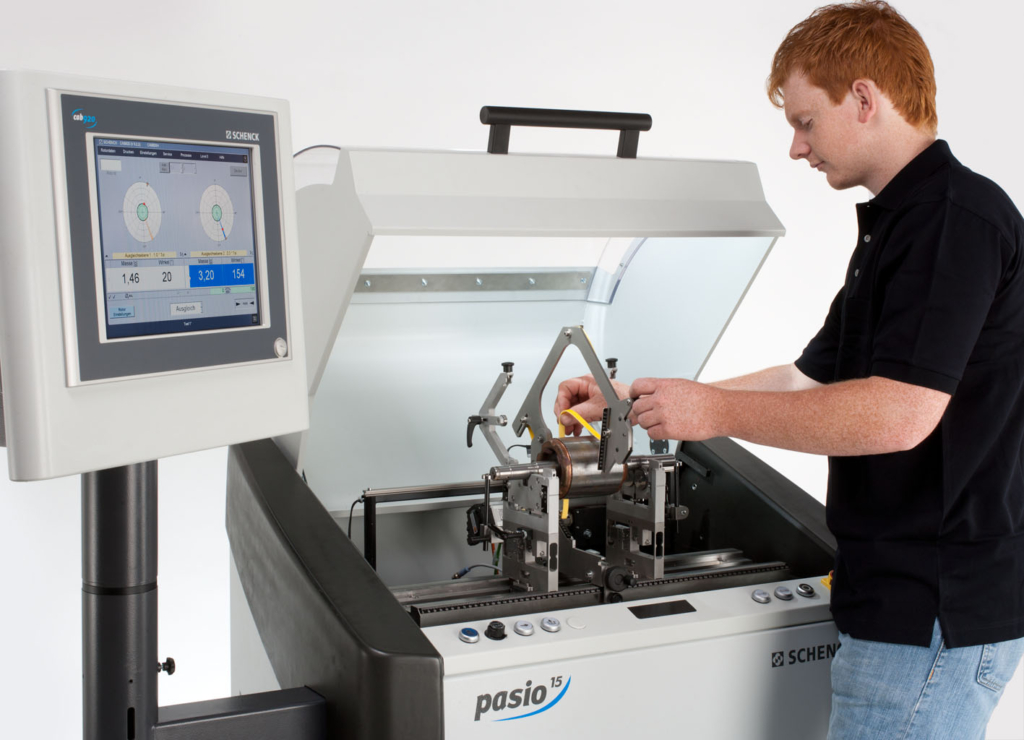

Pasio 15 – Universal balancing machine for rotors up to 15 kg

Schenck Pasio 15 is always the right choice when you want to perfectly balance a wide range of rotors up to 15 kg in weight.

Pasio 15 is the logical link in the chain for our Pasio series: It is flanked on the one side by the Pasio 5 series product for rotors weighting just a few grams up to
5 kg.

On the other side we find the tried and tested Pasio 50 for all rotors up to 50 kg. Just like the other products in the Pasio series, the Pasio 15 concept is based on the same simple idea: trivial and logical operation, ergonomic design of the overall system and an energy-efficient drive concept.

Data at a glance

Maximum rotor weight: 15 kg
Largest rotor diameter: 350 mm
Distance between bearing center points: 60 – 600 m
Minimum diameter: 6 – 30 mm
Minimum achievable residual unbalance per plane: 0.1 gmm

Special features

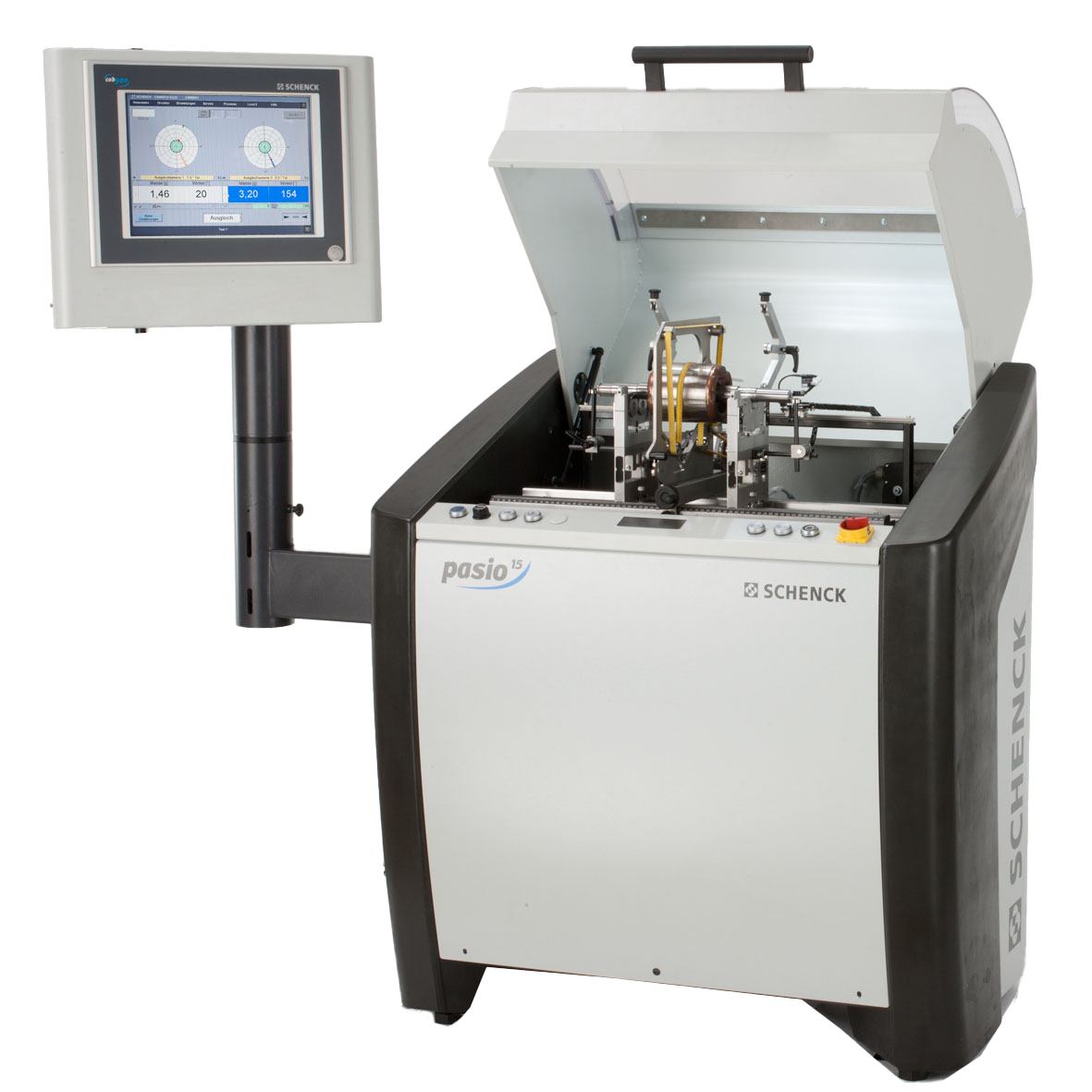

• Space-saving single-unit design with integral measuring station and measuring unit

• Easy to operate through permanent calibration – requires no calibration runs

• Correction in two planes or separate according to static and couple unbalance is possible

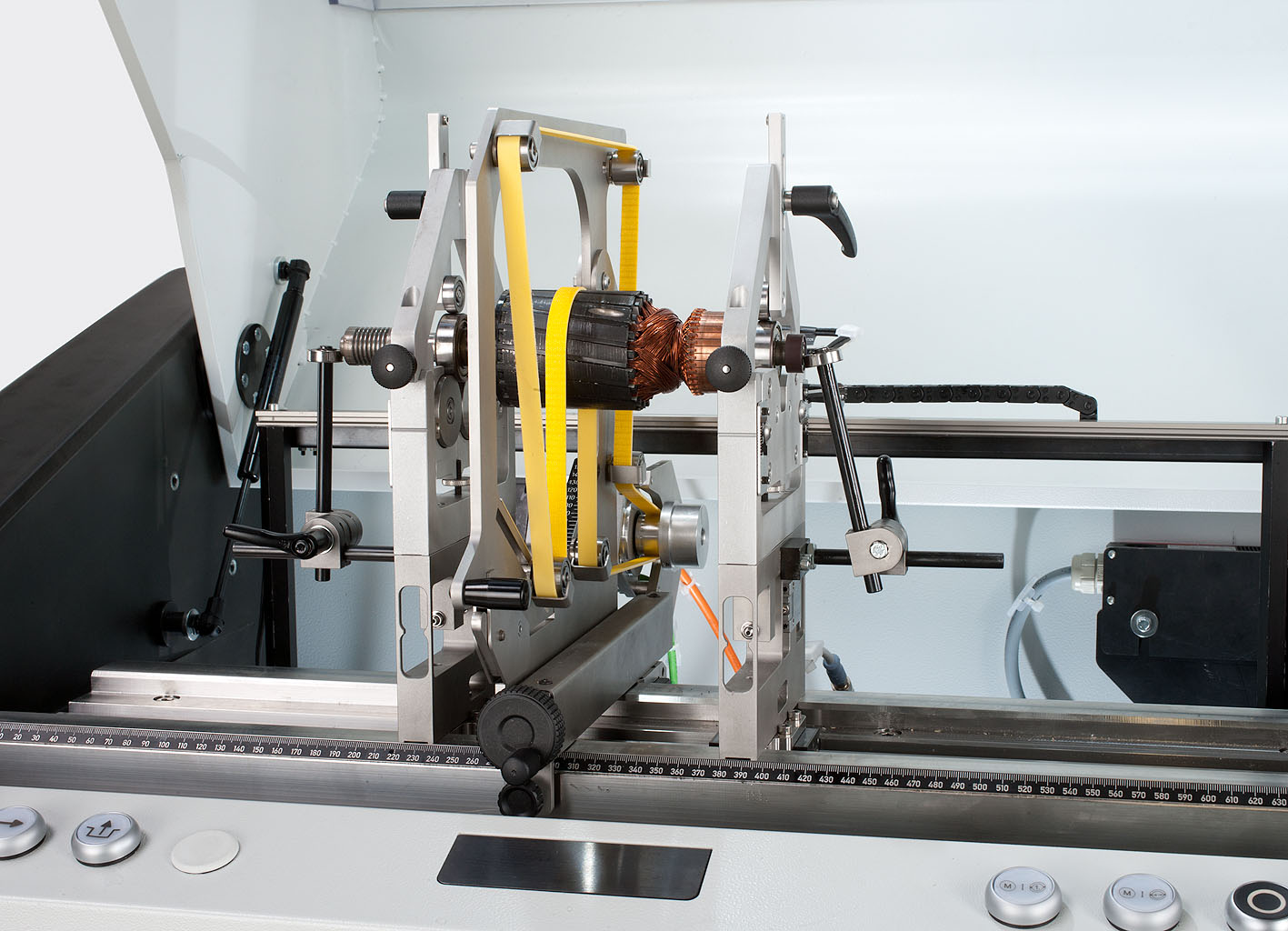

• Rotors can be mounted on their original shafts or on mounting arbors, complete assemblies can be installed in their housing

• Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time.
